3 Basic Process Improvement Tools: Flow Chart, FMEA, Control Plan

November 30, 2017 by Renaud Anjoran

3 Process Improvement Tools Flow Chart FMEA Control Plan

There are 3 basic process improvement tools that you can use to help you plan ahead to avoid missteps that might be quite costly:

  1. The Process flow chart
  2. The Process FMEA (Failure Mode & Effects Analysis)
  3. The control plan (both for product and for the process)

And there is a logical order that you can follow.

This is very relevant in these situations:

  • If you wonder why you still suffer from quality issues, even though the process is quite mature and seems to be well understood.
  • You are preparing to launch the production of a new product… or production of an existing product in a new factory.

Let’s go through these documents one by one.



Process Improvement Tool 1. The Process Flow Chart

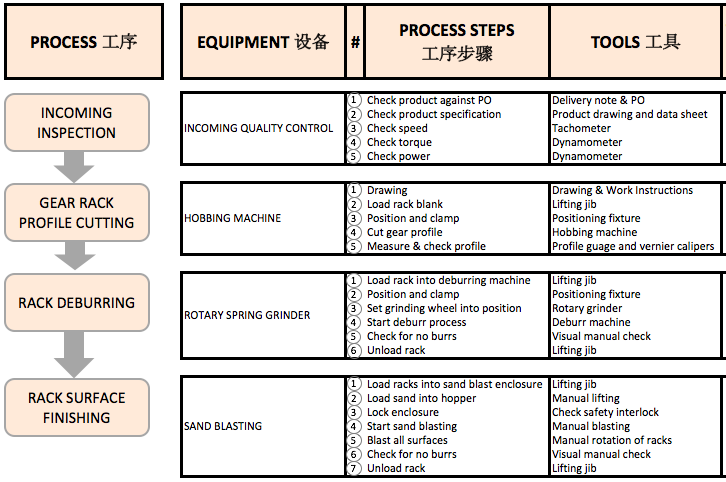

This is simply the mapping of the process steps in a flowchart. There are many templates you can follow, and here is an example.

process flow chart process improvement tool

Take a step back and look at this process. What steps can be combined (less picking & stacking, fewer mistakes, higher productivity)? Are there ways to eliminate one step (e.g. by clipping rather than positioning and then screwing)?

Process Improvement Tool 2. The Process FMEA

With the process map in hand, walk on the factory floor and observe each step. for each process, make a list of things that might go wrong (the “failure modes”). Bring in people from different teams and backgrounds if possible.

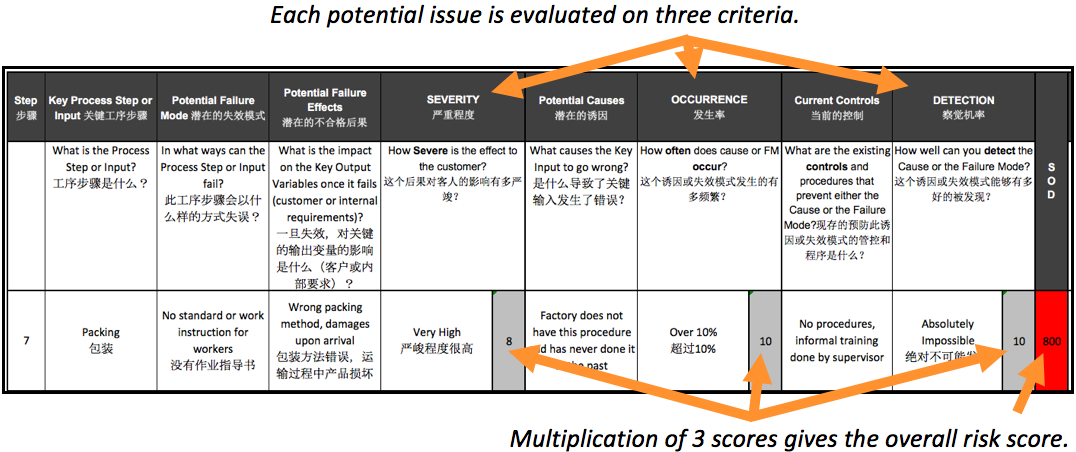

The FMEA is a great way to assess the risks and to rank them. The 3 components of risk in this form are:

  • The severity of the impact (on the customer, on the downstream process…) if it happens
  • Occurrence — how often it is expected to happen
  • Detection — how likely is it to be caught before it has an impact?

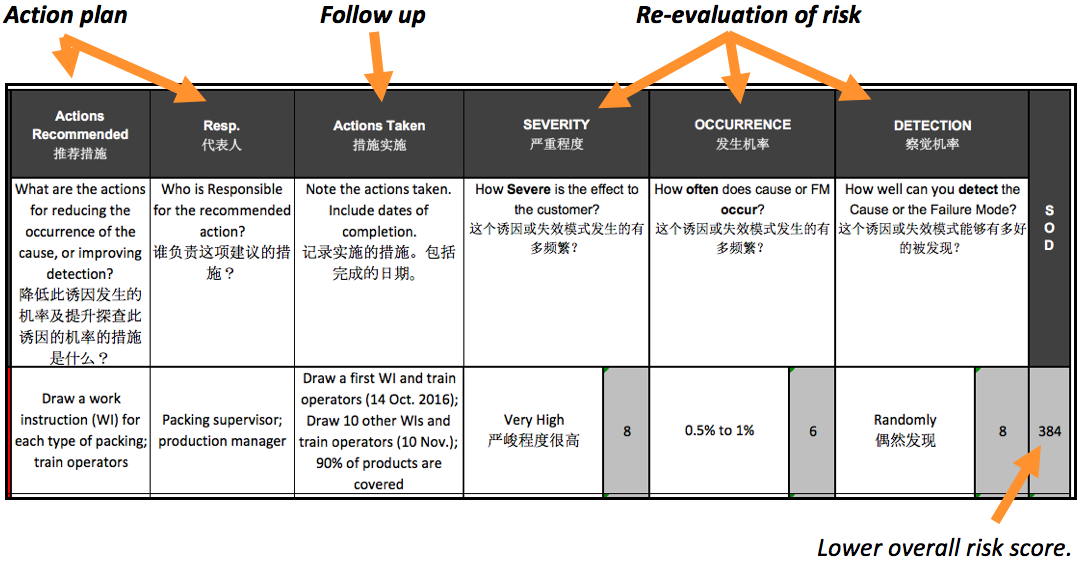

And then, for each failure mode, it drives an action plan. It is a living document and should be updated often. Followup on countermeasures on the FMEA(I covered the Process FMEA in more detail here.)

A word of caution. It is not an easy exercise. Don’t expect a production supervisor or a quality auditor to do it nicely without prior training and experience.

In theory, it is a tool to think of issues that might come up in the future. But an easier way to start is to include the issues that came up in the past… if that process has been in place for some time.

Process Improvement Tool 3. The control plan

Based on the above documents, you have:

  1. A map of the process steps
  2. A ranking of the highest risks to watch out for

This the basis for a good control plan — the central document that the factory should use to drive the process’ capability up (in other words, improve process controls so as to get better product quality).

A good control plan includes:

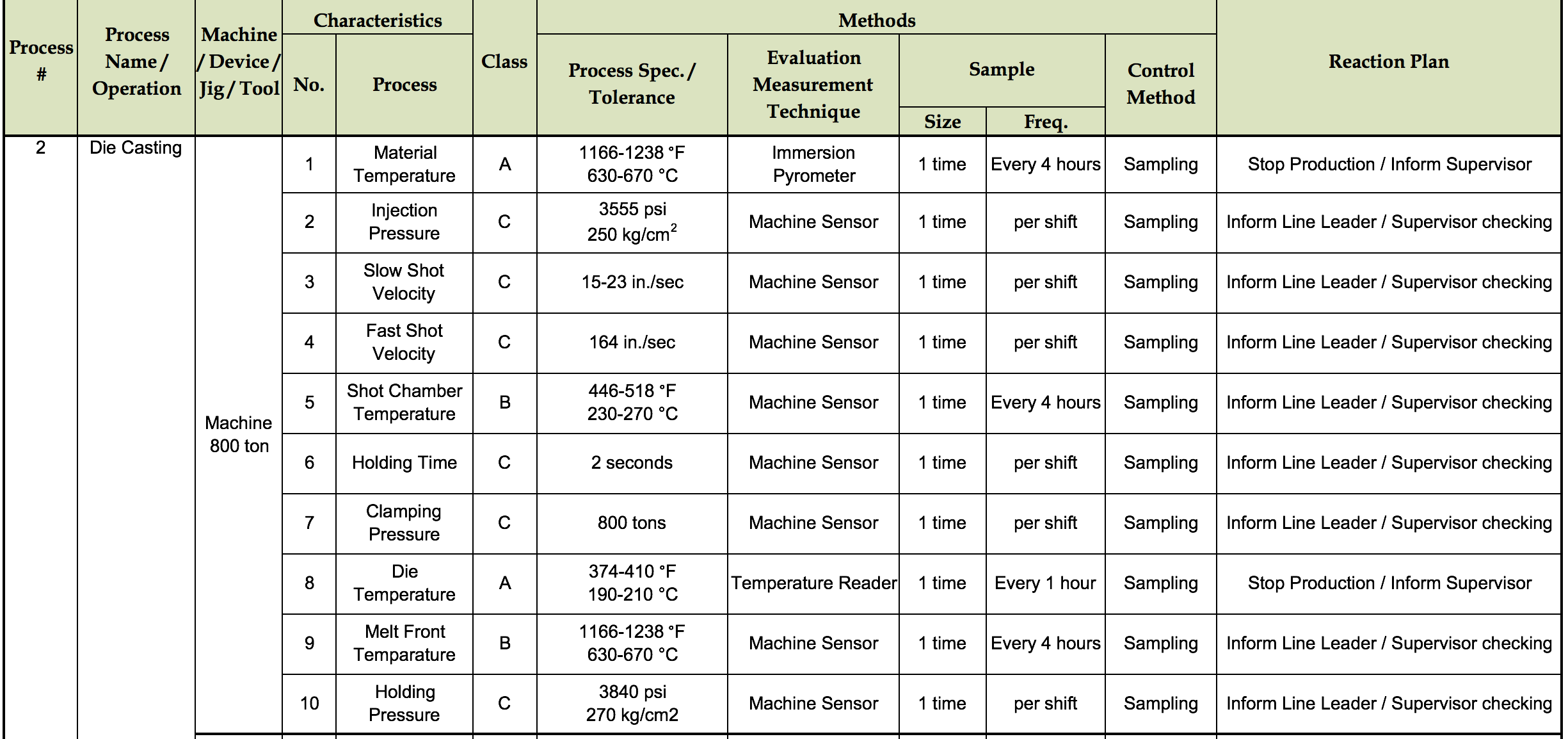

  • Process controls — in this example, what to check regularly on a die casting machine to ensure it works properly. (Note that the mold and the materials also need to be checked regularly — it’s not only about the machine.)

process control plan

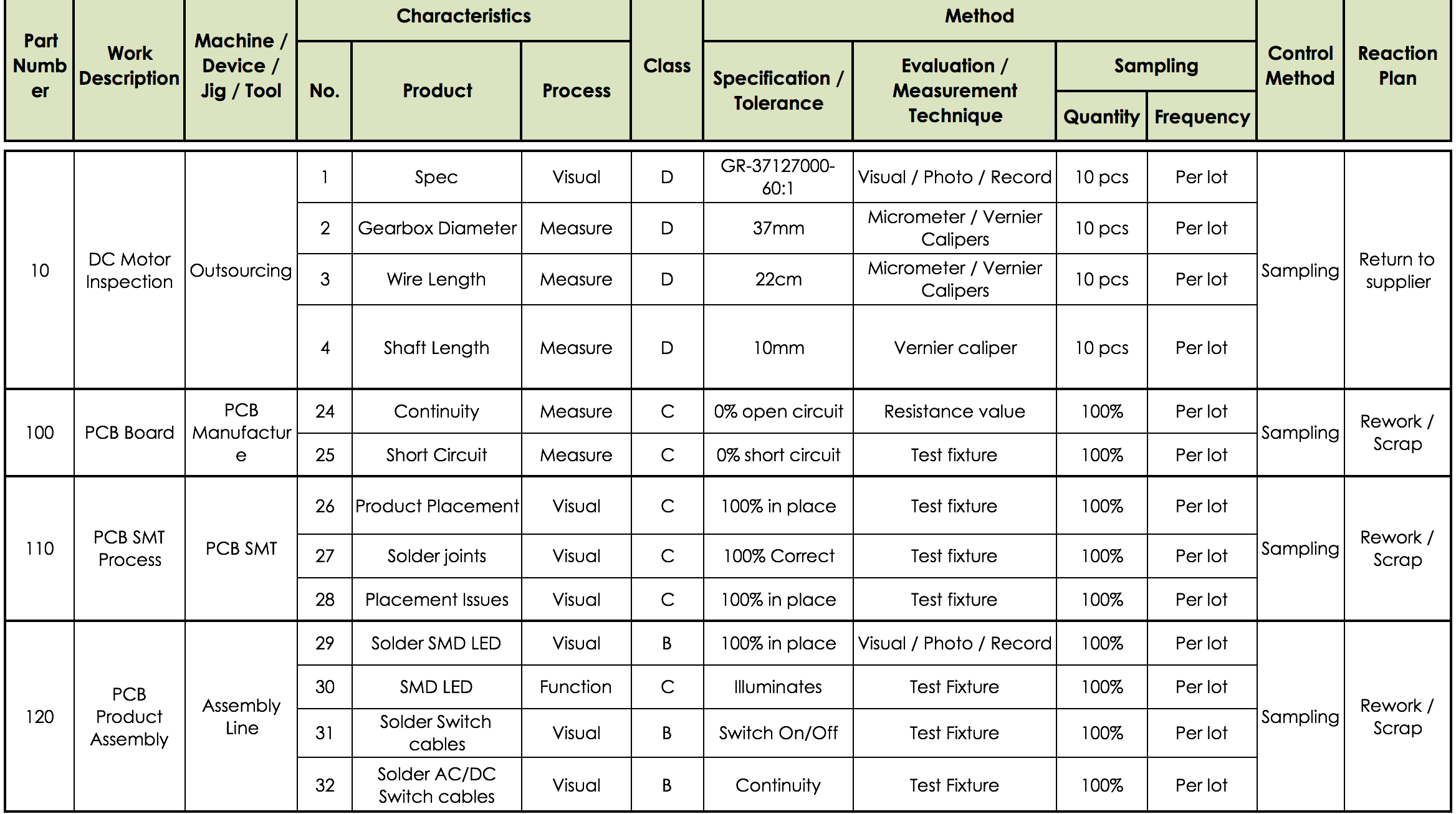

  • Product controls — in this case, inspection of incoming components and inspection of some characteristics of semi-finished products. (It should also include inspection of completed products, obviously.)

product controls graph

Based on the control plan, proper work instructions can be given to the main interested parties:

  • Production operators (who need to achieve that plan and do some of the checks when appropriate)
  • Quality inspectors & engineers (who need to do some of the checks)
  • Maintenance technicians (who need to know what the settings should be on the equipment)
  • Purchasers (who need to buy the right components & materials)
  • Customers (who need to know what specifications the manufacturer commits to, and who may want to audit the process controls)

—

I made this whole approach look very linear, but often those process improvement tools are developed at the same time. Each document feeds the other two.

Our consultants have developed these documents in a number of projects, with good results. They are quite powerful.

What do you think? Do you, or your suppliers, use these process improvement tools?
